Fiber Glass Covered Aluminum Wire uses an aluminum conductor and achieves multi-layer insulation through successive coatings of insulating varnish and tightly wrapped glass fibers.

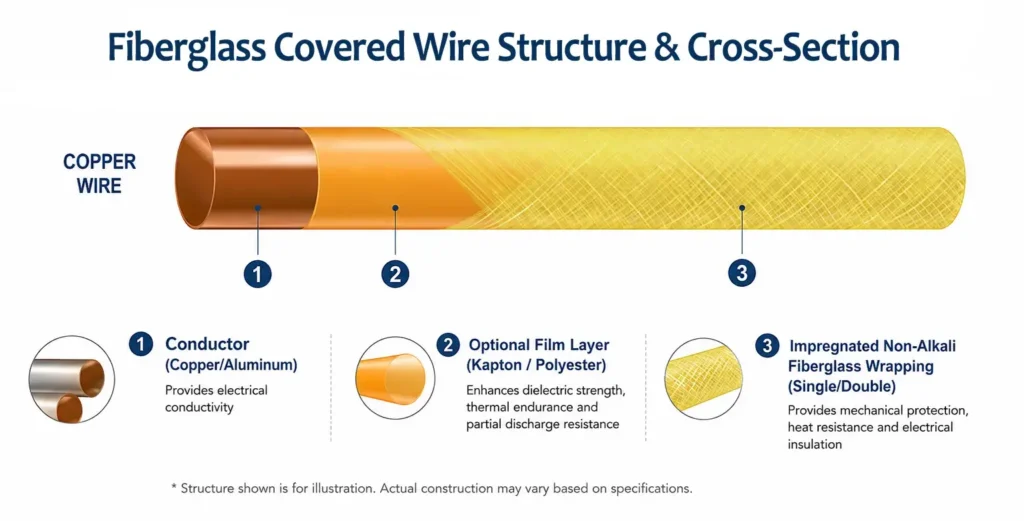

Glass fiber covered aluminum wire structure 1
Inner layer: Rectangular or round aluminum wire.
Middle layer: Coated with 0.2–0.5 mm of high-temperature resistant insulating varnish (polyesterimide or polyimide).
Glass fiber layer: Single or double-layer mesh-braided glass fiber wrapping.
Outer layer: A secondary high-temperature varnish coating that cures into a seamless insulation layer.

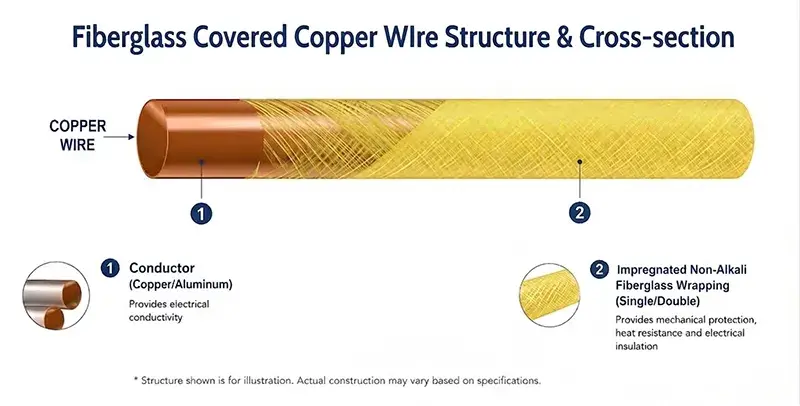

Fiber Glass Covered Aluminum Wire structure 2
Inner layer: Rectangular or round aluminum wire.
Glass fiber layer: Single or double-layer mesh-braided glass fiber wrapping.
Outer layer: A secondary high-temperature varnish coating that cures into a seamless insulation layer.1.
1.Enamels:
Diphenyl oxide of different temperature classes：130/155/180
2. Layers:
single and double
3.Insulation thickness(retangular):
(1)single
(2)double
(3)fiber and film covered
4.Standards:
IEC, NEMA, JIS, GB, such as IEC 60 317, NEMA MW 1000 or JIS C 3202
Double coated fiber glass covered aluminum round/flat Wire main dimensio
1.Conductor : aluminum
(1)High conductivity (2)Good solderability (3)High ductility
2.Shape：round
(1)Diameters：ranging from 2.0 to 7.0mm, which translates to 12 – 1 AWG or 14-1 SWG
Shape: retangular
(2)Diameters(mm): a:1-10,b:3-35
3.Enamels:
polyester:oil-modified:PETG:diphenyl oxide of different temperature classes：130/155/180
4.Layers:
single and double
5.Insulation thickness(retangular):
(1)single
(2)double
(3)fiber and film covered
6.Standards:
IEC, NEMA, JIS, GB, such as IEC 60 317, NEMA MW 1000 or JIS C 3202
Main dimension
| Name | Insulation Fiber Glass Winding Wire | |
| Conductor | Copper and Aluminum Wire | |
| Dimension | Round | Diameter: 1.0~7.0mm |
| Rectangular | Thickness(a): 1.0~10.0mm, Width(b): 3.0~35.0mm | |
| Insulation Material | Fiber Glass | |
| Insulation Thickness | Single, double or according to your requirement | |
| Standard | IEC, NEMA, GB, JIS | |
| Paking | 30kg~150kg Poly-wood spool (250*500/ 250*600) | |
| Application | Oil-immersed transformer windings;medium and large electrical motor and power substations etc. | |
Fiber Glass Covered Wire Properties:
(1)High voltage and temperature
(2)High resistance to abrasion
(3)Electromechanical properties
(4)Good adhesion, anti-moist
Fiber Glass Covered Copper Wire Applications:
transformer windings, motor windings, large and medium high-voltage electrical machine.
LP industry also provides enameled wire, fiberglass coved copper wire, aluminum foil and copper foil for transformer & motor windings.
